nilearn.plotting.plot_anat¶
- nilearn.plotting.plot_anat(anat_img=<MNI152Template>, cut_coords=None, output_file=None, display_mode='ortho', figure=None, axes=None, title=None, annotate=True, threshold=None, draw_cross=True, black_bg='auto', dim='auto', cmap=<matplotlib.colors.LinearSegmentedColormap object>, colorbar=False, cbar_tick_format='%.2g', radiological=False, vmin=None, vmax=None, **kwargs)[source]¶

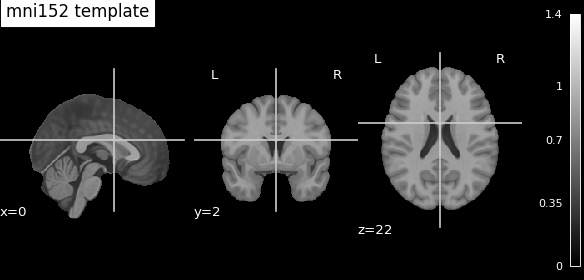

Plot cuts of an anatomical image.
By default 3 cuts: Frontal, Axial, and Lateral.
- Parameters:
- anat_imgNiimg-like object, default=MNI152TEMPLATE
See Input and output: neuroimaging data representation. The anatomical image to be used as a background. If None is given, nilearn tries to find a T1 template.
- cut_coordsNone, a
tuple
offloat
, orint
, optional The MNI coordinates of the point where the cut is performed.
If display_mode is ‘ortho’ or ‘tiled’, this should be a 3-tuple: (x, y, z)
For display_mode == “x”, “y”, or “z”, then these are the coordinates of each cut in the corresponding direction.
If None is given, the cuts are calculated automatically.
If display_mode is ‘mosaic’, and the number of cuts is the same for all directions, cut_coords can be specified as an integer. It can also be a length 3 tuple specifying the number of cuts for every direction if these are different.
Note
If display_mode is “x”, “y” or “z”, cut_coords can be an integer, in which case it specifies the number of cuts to perform.
- output_file
str
, or None, optional The name of an image file to export the plot to. Valid extensions are .png, .pdf, .svg. If output_file is not None, the plot is saved to a file, and the display is closed.
- display_mode{“ortho”, “tiled”, “mosaic”, “x”, “y”, “z”, “yx”, “xz”, “yz”}, default=”ortho”
Choose the direction of the cuts:
“x”: sagittal
“y”: coronal
“z”: axial
“ortho”: three cuts are performed in orthogonal directions
“tiled”: three cuts are performed and arranged in a 2x2 grid
“mosaic”: three cuts are performed along multiple rows and columns
- figure
int
, ormatplotlib.figure.Figure
, or None, optional Matplotlib figure used or its number. If None is given, a new figure is created.
- axes
matplotlib.axes.Axes
, or 4 tupleoffloat
: (xmin, ymin, width, height), default=None The axes, or the coordinates, in matplotlib figure space, of the axes used to display the plot. If None, the complete figure is used.
- title
str
, or None, default=None The title displayed on the figure.
- annotate
bool
, default=True If annotate is True, positions and left/right annotation are added to the plot.
- thresholda number, None, or ‘auto’, optional
If None is given, the image is not thresholded. If a number is given, it is used to threshold the image: values below the threshold (in absolute value) are plotted as transparent. If “auto” is given, the threshold is determined magically by analysis of the image.
- draw_cross
bool
, default=True If draw_cross is True, a cross is drawn on the plot to indicate the cut position.
- black_bg
bool
, or “auto”, optional If True, the background of the image is set to be black. If you wish to save figures with a black background, you will need to pass facecolor=”k”, edgecolor=”k” to
matplotlib.pyplot.savefig
. Default=’auto’.- dim
float
, or “auto”, optional Dimming factor applied to background image. By default, automatic heuristics are applied based upon the background image intensity. Accepted float values, where a typical span is between -2 and 2 (-2 = increase contrast; 2 = decrease contrast), but larger values can be used for a more pronounced effect. 0 means no dimming. Default=’auto’.
- cmap
matplotlib.colors.Colormap
, orstr
, optional The colormap to use. Either a string which is a name of a matplotlib colormap, or a matplotlib colormap object. Default=`plt.cm.gray`.
- colorbar
bool
, default=False If True, display a colorbar on the right of the plots.
- cbar_tick_format: :obj:`str`, default=”%.2g” (scientific notation)
Controls how to format the tick labels of the colorbar. Ex: use “%i” to display as integers.
- radiological
bool
, default=False Invert x axis and R L labels to plot sections as a radiological view. If False (default), the left hemisphere is on the left of a coronal image. If True, left hemisphere is on the right.
- vmin
float
, optional Lower bound of the colormap. If None, the min of the image is used. Passed to
matplotlib.pyplot.imshow
.- vmax
float
, optional Upper bound of the colormap. If None, the max of the image is used. Passed to
matplotlib.pyplot.imshow
.- kwargs: extra keyword arguments, optional
Extra keyword arguments ultimately passed to matplotlib.pyplot.imshow via
add_overlay
.
- Returns:
- display
OrthoSlicer
or None An instance of the OrthoSlicer class. If
output_file
is defined, None is returned.
- display
Notes
Arrays should be passed in numpy convention: (x, y, z) ordered.
For visualization, non-finite values found in passed ‘anat_img’ are set to zero.
