Note

This page is a reference documentation. It only explains the class signature, and not how to use it. Please refer to the user guide for the big picture.

nilearn.decoding.SearchLight

class nilearn.decoding.SearchLight(mask_img, process_mask_img=None, radius=2.0, estimator='svc', n_jobs=1, scoring=None, cv=None, verbose=0)[source]

Implement search_light analysis using an arbitrary type of classifier.

Parameters:
mask_imgNiimg-like object

See Input and output: neuroimaging data representation. Boolean image giving location of voxels containing usable signals.

process_mask_imgNiimg-like object, optional

See Input and output: neuroimaging data representation. Boolean image giving voxels on which searchlight should be computed.

radiusfloat, default=2.

radius of the searchlight ball, in millimeters.

estimator‘svr’, ‘svc’, or an estimator object implementing ‘fit’

The object to use to fit the data

n_jobsint, default=1

The number of CPUs to use to do the computation. -1 means ‘all CPUs’.

scoringstring or callable, optional

The scoring strategy to use. See the scikit-learn documentation If callable, takes as arguments the fitted estimator, the test data (X_test) and the test target (y_test) if y is not None.

cvcross-validation generator, optional

A cross-validation generator. If None, a 3-fold cross validation is used or 3-fold stratified cross-validation when y is supplied.

verboseint, default=0

Verbosity level (0 means no message).

Attributes:
scores_numpy.ndarray
3D array containing searchlight scores for each voxel, aligned

with the mask.

Added in version 0.11.0.

process_mask_numpy.ndarray
Boolean mask array representing the voxels included in the

searchlight computation.

Added in version 0.11.0.

masked_scores_numpy.ndarray

1D array containing the searchlight scores corresponding to the masked region only.

Added in version 0.11.0.

Notes

The searchlight [Kriegeskorte 06] is a widely used approach for the study of the fine-grained patterns of information in fMRI analysis. Its principle is relatively simple: a small group of neighboring features is extracted from the data, and the prediction function is instantiated on these features only. The resulting prediction accuracy is thus associated with all the features within the group, or only with the feature on the center. This yields a map of local fine-grained information, that can be used for assessing hypothesis on the local spatial layout of the neural code under investigation.

Nikolaus Kriegeskorte, Rainer Goebel & Peter Bandettini. Information-based functional brain mapping. Proceedings of the National Academy of Sciences of the United States of America, vol. 103, no. 10, pages 3863-3868, March 2006

__init__(mask_img, process_mask_img=None, radius=2.0, estimator='svc', n_jobs=1, scoring=None, cv=None, verbose=0)[source]
fit(imgs, y, groups=None)[source]

Fit the searchlight.

Parameters:
imgsNiimg-like object

See Input and output: neuroimaging data representation. 4D image.

y1D array-like

Target variable to predict. Must have exactly as many elements as 3D images in img.

groupsarray-like, optional

group label for each sample for cross validation. Must have exactly as many elements as 3D images in img. default None

property scores_img_

Convert the 3D scores array into a NIfTI image.

transform(imgs)[source]

Apply the fitted searchlight on new images.

fit_transform(X, y=None, **fit_params)

Fit to data, then transform it.

Fits transformer to X and y with optional parameters fit_params and returns a transformed version of X.

Parameters:
Xarray-like of shape (n_samples, n_features)

Input samples.

yarray-like of shape (n_samples,) or (n_samples, n_outputs), default=None

Target values (None for unsupervised transformations).

**fit_paramsdict

Additional fit parameters.

Returns:
X_newndarray array of shape (n_samples, n_features_new)

Transformed array.

get_metadata_routing()

Get metadata routing of this object.

Please check User Guide on how the routing mechanism works.

Returns:
routingMetadataRequest

A MetadataRequest encapsulating routing information.

get_params(deep=True)

Get parameters for this estimator.

Parameters:
deepbool, default=True

If True, will return the parameters for this estimator and contained subobjects that are estimators.

Returns:
paramsdict

Parameter names mapped to their values.

set_fit_request(*, groups='$UNCHANGED$', imgs='$UNCHANGED$')

Request metadata passed to the fit method.

Note that this method is only relevant if enable_metadata_routing=True (see sklearn.set_config). Please see User Guide on how the routing mechanism works.

The options for each parameter are:

  • True: metadata is requested, and passed to fit if provided. The request is ignored if metadata is not provided.

  • False: metadata is not requested and the meta-estimator will not pass it to fit.

  • None: metadata is not requested, and the meta-estimator will raise an error if the user provides it.

  • str: metadata should be passed to the meta-estimator with this given alias instead of the original name.

The default (sklearn.utils.metadata_routing.UNCHANGED) retains the existing request. This allows you to change the request for some parameters and not others.

Added in version 1.3.

Note

This method is only relevant if this estimator is used as a sub-estimator of a meta-estimator, e.g. used inside a Pipeline. Otherwise it has no effect.

Parameters:
groupsstr, True, False, or None, default=sklearn.utils.metadata_routing.UNCHANGED

Metadata routing for groups parameter in fit.

imgsstr, True, False, or None, default=sklearn.utils.metadata_routing.UNCHANGED

Metadata routing for imgs parameter in fit.

Returns:
selfobject

The updated object.

set_output(*, transform=None)

Set output container.

See Introducing the set_output API for an example on how to use the API.

Parameters:
transform{“default”, “pandas”}, default=None

Configure output of transform and fit_transform.

  • “default”: Default output format of a transformer

  • “pandas”: DataFrame output

  • “polars”: Polars output

  • None: Transform configuration is unchanged

Added in version 1.4: “polars” option was added.

Returns:
selfestimator instance

Estimator instance.

set_params(**params)

Set the parameters of this estimator.

The method works on simple estimators as well as on nested objects (such as Pipeline). The latter have parameters of the form <component>__<parameter> so that it’s possible to update each component of a nested object.

Parameters:
**paramsdict

Estimator parameters.

Returns:
selfestimator instance

Estimator instance.

set_transform_request(*, imgs='$UNCHANGED$')

Request metadata passed to the transform method.

Note that this method is only relevant if enable_metadata_routing=True (see sklearn.set_config). Please see User Guide on how the routing mechanism works.

The options for each parameter are:

  • True: metadata is requested, and passed to transform if provided. The request is ignored if metadata is not provided.

  • False: metadata is not requested and the meta-estimator will not pass it to transform.

  • None: metadata is not requested, and the meta-estimator will raise an error if the user provides it.

  • str: metadata should be passed to the meta-estimator with this given alias instead of the original name.

The default (sklearn.utils.metadata_routing.UNCHANGED) retains the existing request. This allows you to change the request for some parameters and not others.

Added in version 1.3.

Note

This method is only relevant if this estimator is used as a sub-estimator of a meta-estimator, e.g. used inside a Pipeline. Otherwise it has no effect.

Parameters:
imgsstr, True, False, or None, default=sklearn.utils.metadata_routing.UNCHANGED

Metadata routing for imgs parameter in transform.

Returns:
selfobject

The updated object.

Examples using nilearn.decoding.SearchLight

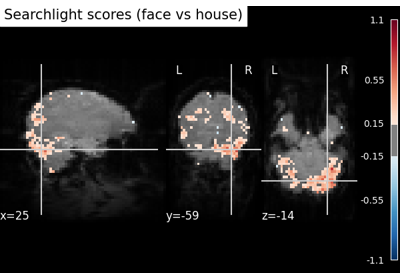

Searchlight analysis of face vs house recognition

Searchlight analysis of face vs house recognition

Example of pattern recognition on simulated data

Example of pattern recognition on simulated data
